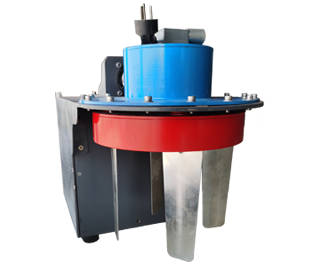

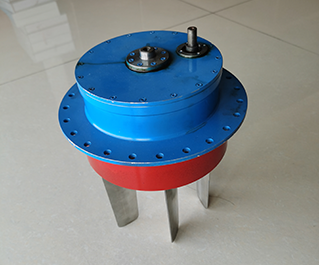

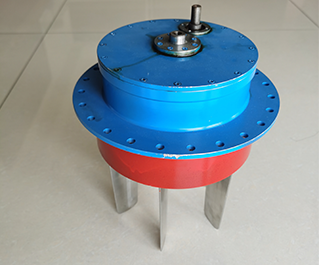

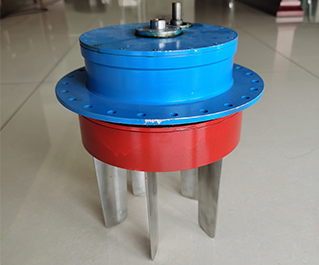

Marine straight-wing propeller

The straight-wing propulsion is an old marine propulsion technology. Traditional straight-wing propellers frequently use the connecting rod configuration to control the blade swing which has excellent maneuverability. However, traditional straight-wing propellers have a high cost while a low propulsion efficiency. Nowadays only a few special-purpose vessels are selected for such application.

The straight-wing rudder propeller adopts the planetary gear transmission mechanism to control the blade movement. While having excellent maneuverability, the blade can also achieve a high-efficient hydrodynamic performance.

The straight-wing rudder propeller reinvents the traditional propeller propulsion method, and provides a better propulsion technology for ships.

☞ Large thrust area, shallow draft, high propulsion efficiency;

☞ Excellent maneuverability, accurate positioning and control of the ship;

☞ Smooth operation, small vibration, low noise;

☞ Excellent cavitation performance at high speeds, high hydrodynamic efficiency;

☞ High integration of the propulsion system，better use of the ship space；

☞ Hassel-free installation, maintenance and repair.

No.		Model	Power P(kW)	Input speed N(rpm)	Number of blades Z.	Diameter of paddle Φd(mm)	Length of blade L(mm)	Weight W(kg)
1	*ZYDJ-2*		2	*1500*	4	*196*	*190*	10
2	*ZYDJ-5*		5	*1200*	4	*390*	*300*	80
3	*ZYDJ-11*		11	*975*	4	*448*	*400*	*145*
4	*ZYDJ-30*		30	*1280*	4	*504*	*400*	*190*
5	*ZYDJ-75*		75	*700*	4	*560*	*490*	*320*
6	*ZYDJ-90*		90	*1500*	4	*560*	*490*	*350*
7	*ZYDJ-160*		*160*	*980*	5	*1182*	*1250*	*3200*
8	*ZYDJ-550*		*537*	*2300*	4	*672*	*450*	*550*
9	ZYDJ-800		800-1000	800-1000	5-6	1240-2208	750-1500	≥6000
10	ZYDJ-1200		1200-1500	500-800	5-6	1560-3040	1100-2200	≥12000
11	*ZYDJ-2000*		*1600-2000*	*480*	6	*2688*	*2100*	*26000*
Note: The data marked in bold are the existing products or products under development (ZYDJ-550 is a high-speed marine propeller)
